ALTERNATING PRESSURE PAD

1815.Easy Air

  • The PressureGuard Easy Air is independently documented to outperform every leading low-air-loss system in this key performance area.
  • Remarkably, it does so with none of the compromises low-air-loss prescribers have come to accept.
  • The Easy Air LR adds lateral rotation.
  • The Easy Air XL 1000 serves the Bariatric Patient.
  • Low-air-loss Therapy with Alternating Pressure
  • Best performance. None of the compromises.
  • Clinicians choose low air loss systems to address maceration, the weakening of the skin due to excess moisture.
  • The new PressureGuard Easy Air is independently documented to outperform every leading low air loss system in this key performance area.
  • Remarkably, it does so with none of the compromises low air loss users have come to accept, thanks to its exclusive Air Diffusion Matrix technology and PressureGuard air/foam design.
  • Easy Air won’t lose inflation in a power outage.
  • Its stable surface won’t “swallow up” the user. And its Safety Edge won’t collapse like air-only mattresses can, making transfers safer.
  • It won’t make the user too hot or too cold, either.
  • Ultra-simple to set up, clean and use. Dial sets the comfort level.
  • “On/off” buttons control air flow and alternating pressure feature.
  • Weight limit: 500 lbs. on standard model
  • Mattress weight: 22 lbs.

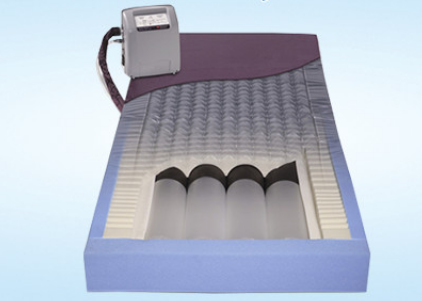

1816.Easy Air LR

  • Low-air-loss Therapy with Alternating Pressure or Lateral Rotation
  • All of the most needed features in one surface.
  • Start with the popular PressureGuard Easy Air, the low-air-loss surface independently documented to outperform every leading low air loss system in moisture removal.
  • Add the alternating pressure and lateral rotation modalities found in the effective PressureGuard APM2.
  • The result: The most versatile, multi-modality surface on the market.
  • Remarkably, it does so with none of the compromises low air loss users have come to accept, thanks to its exclusive Air Diffusion Matrix technology and PressureGuard air/foam design.
  • Easy Air LR won’t lose inflation in a power outage. Its stable surface won’t “swallow up” the user.
  • And its Safety Edge won’t collapse like air-only mattresses can, making transfers safer.
  • It won’t make the user too hot or too cold, either.
  • Ultra-simple to set up, clean and use. Comfort level is adjustable.
  • “On/off” buttons control air flow and alternating pressure/lateral rotation/ float feature.
  • PressureGuard Easy Air LR Recessed Deck Model
  • The introduction of recessed deck versions of selected Span surfaces, including the Easy Air LR, brings our advanced technology to recessed deck beds.
  • Our engineers have developed a version of the Easy Air LR surface to accommodate the unique design requirements of recessed deck beds.
  • V-shaped edges enable the mattress to fit the recessed deck bedframe, while the compressible section accommodates multiple lengths and foot positions.
  • Patented design creates an inner bolster “cradle” effect for added safety when the patient sits on or moves toward the bed edge.
  • This protective feature helps direct the patient’s center of gravity safely back toward the center of the bed.
  • Two sturdy fabric handles improve relocation ergonomics.
  • Inner Bolster “Cradling” for Patient Safety
  • Compressible section adds length flexibility
  • Weight limit: 500 lbs. in FLOAT and ALTERNATING, 350 lbs. in ROTATION.
  • Mattress weight: 22 lbs.

1817.Easy Air XL

  • Easy Air Low-Air-Loss and Alternating Pressure for users up to 1000 lbs.
  • The Easy Air low-air-loss design, documented best among leading low air loss systems is accessible to bariatric patients in the PressureGuard Easy Air XL.
  • Low-air-loss skin maceration control  – often critical in bariatric care – is coupled with the multiple advantages of the PressureGuard design.
  • These technical innovations set the Easy Air XL apart among bariatric surfaces by effectively addressing the effects of pressure, shearing, friction, heat buildup, and maceration.
  • Additional Advantages
  • The Easy Air XL won’t lose inflation in a power outage and its stable surface is designed not to “swallow up” the user.
  • Weight limit: 1000 lbs.
  • Mattress weight: approx. 32 lbs.

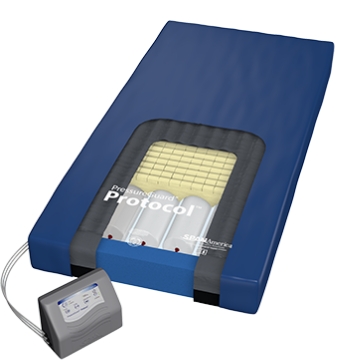

1818.Protocol

  • The PressureGuard Protocol provides an unmatched combination of microclimate management, pressure redistribution, ease of use and patient/caregiver safety.
  • Its efficient design generates substantially less heat and noise than traditional “roll-up” low air loss surfaces while consuming less power.
  • Microclimate Management with Alternating Pressure Therapy
  • Span-America’s PressureGuard Protocol provides caregivers an unmatched combination of microclimate management, pressure redistribution, ease of use and patient/caregiver safety.
  • Protocol’s proprietary air delivery cover design supplies a gentle flow of air directly to the underside of its highly vapor permeable coverlet, carrying away excess moisture vapor to help protect vulnerable skin.
  • Thanks to its innovative design, the Protocol’s efficient control unit generates substantially less heat and noise than traditional high-output low air loss blowers while consuming less power.
  • Caregivers can select subtle alternating pressure or powered flotation treatment modes.
  • Auto firm mode provides additional surface stability for ADLs, transfers, and feeding when desired, then automatically resumes the selected treatment mode after 20 minutes.
  • Unlike typical roll-up surfaces, Protocol can maintain its inflation in a power outage or during transport.
  • System includes mattress, control unit and machine washable coverlet.
  • Raised Perimeter models add an extra measure of safety by helping to prompt the user away from edge of bed.
  • Additional Details:
  • Weight limit: 400 lbs.
  • Mattress Weight: 22 lbs.

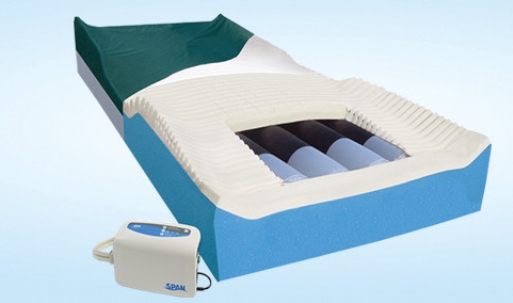

1819.Safety Supreme

  • The PressureGuard APM² Safety Supreme combines all the features of the top-selling PressureGuard APM2, plus the added safety benefits of raised perimeter edges to help prompt the user away from the edge of the bed.
  • Proven Therapies with Full Safety Features Package
  • Combines most of the features of the PressureGuard APM2 with Deluxe Pump, and adds raised perimeter edges and a fire-barrier sleeve as standard equipment.
  • You get the proven therapeutic benefits of the powered air cylinders underneath the Geo-Matt topper, raised edges that increase patient safety from falls, restraints and side-rail entrapment, and the fire barrier sleeve that conforms to the toughest fire regulations in the US.
  • Maximum Safety.
  • Maximum Therapy.
  • Maximum Value.
  • Weight limit: 350 lbs.
  • Mattress weight: 20 lbs.

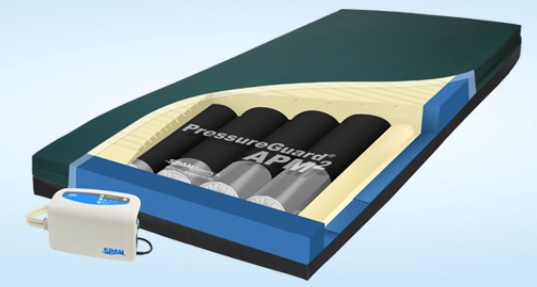

2183.APM2

  • The PressureGuard APM² enables you to change instantly and easily from alternating pressure to basic lateral rotation with a single, recessed toggle switch.
  • The silent, reliable, maintenance-free control unit allows simple adjustment for user comfort.
  • Alternating Pressure or Lateral Rotation at the Flip of a Switch!   Now with Shear Transfer Zones and Digital Control Unit.
  • With its two distinct therapy modes, the PressureGuard APM² gives you twice the treatment options.
  • Twice the flexibility. Twice the value.  And now enhanced cover and control unit features as well.
  • The APM² has been an industry-leading air therapy solution for more than a decade, based in large part on its documented superiority vs. typical, roll-up treatment surfaces¹.
  • An upgraded cover design and control unit now provide even greater immersion, envelopment, shear reduction, treatment flexibility, caregiver ergonomics and user comfort.
  • The cover’s enhanced features include the unique design of the anti-microbial bi-directional stretch cover made with Span’s superior LifeSpan fabric.
  • LifeSpan is extremely durable and cleanable and delivers outstanding resistance to chemical breakdown caused by bleach and other harsh disinfectants with its polycarbonate-fortified coating.
  • Change instantly and easily from alternating pressure to basic lateral rotation with a single, recessed toggle switch. Requires no disconnecting or exchanging of air lines.
  • The dependable digital control unit is lightweight and quiet.
  • The easy-to-use, white multi-functional control unit provides simple, indexed comfort adjustment and a selectable audible alarm.
  • A timed (20 minute) “Auto Firm” mode facilitates caregiving activities such as transfers, ADLs and CPR and then returns to its previously selected mode.
  • “Alternate Mode” changes loading in a 10-minute cycle of either alternating pressure or lateral rotation therapy as selected at the mattress.
  • “Float” mode provides powered flotation therapy.
  • Indicator lights for “Low pressure” and “Power Failure” give users assurance-at-a-glance of proper function.
  • Weight limit: 350 lbs.
  • Mattress weight: 20 lbs.
  • Control Unit weight: 6.3 lbs

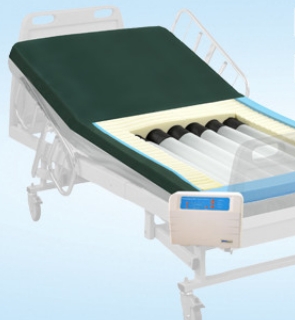

1820.Bariatric APM

  • The PressureGuard Bariatric APM offers alternating pressure therapy with 8 comfort settings for users up to 750 lbs.
  • The powerful digital control unit supplies up to four times the air output of conventional units.
  • Alternating Pressure Air Therapy
  • Unlike other alternating pressure mattresses, the PressureGuard APM does not create extreme pressure gradients between inflated and deflated cylinders.
  • On top, the Geo-Matt anti-shearing surface forms a comfortable, therapeutic interface between the air system and the user.
  • It absorbs and smoothes sharp pressure drop-offs that other surfaces can’t, while the air system does the “heavy lifting” below, alternating weight bearing across the surface in ten-minute cycles.
  • Six cylinders are programmed to inflate/deflate in a four-up-two-down pattern, ensures maximum patient support throughout the cycle.
  • Digital control unit features
  • Up to four times the air output of conventional units
  • Eight electronically-controlled comfort settings
  • Programmable cycle times of 20, 25, 30, or 35 minutes
  • Low pressure indicator and audible alarm
  • Other standard PressureGuard features include the exclusive Heel Slope taper, and two-part Safety-Edge bolster system for added stability when sitting or transferring.
  • Weight limit: 750 lbs.

1821.Turn Select

  • The PressureGuard Turn Select gently rotates the user laterally up to 30 degrees, with dwell times as short as 1 minute and as long as 2 hours.
  • Features handheld pendant and ultra-compact built-in microprocessor.
  • Lateral Rotation Air Therapy
  • The PressureGuard Turn Select provides easily customizable lateral rotation 24 hours a day.
  • By slowly, gently and quietly repositioning the user, the Turn Select facilitates treatment of pressure ulcers while helping to offset the hazards of immobility.
  • Hand-held pendant control allows convenient programming of the system`s four operating modes.
  • Caregivers can select a standard turning program, or create a pattern fully customized to the patient’s condition.
  • Select Roll Angles of 5, 15, or up to 30 degrees.
  • Select Roll Patterns in any combination of left, center and right.
  • Select Dwell Times of 1, 15, 30, 60 or 120 minutes in any position or angle.
  • Microprocessor controlled motion system is integrated directly into mattress, leaving no bulky pump or external air lines to contend with.
  • Just hour after hour of whisper-quiet, trouble free operation.
  • Even during power loss, the system maintains proper inflation and support until power is restored and rotation can be resumed.
  • Other features include CPR mode, program lock-out, and CPR alarm.
  • Includes exclusive Geo-Matt anti-shearing top surface, Heel Slope feature, and Safety Edge stability bolster system found in all PressureGuard models.
  • Weight limit: 350 lbs.
  • Mattress weight: 28 lbs.

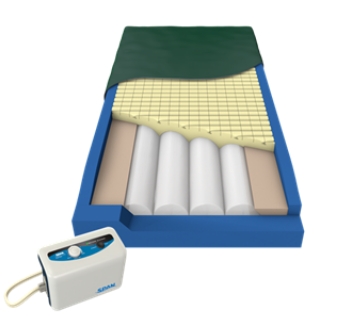

2184.APM

  • Unlike other alternating pressure mattresses, the PressureGuard APM won’t create extreme pressure gradients between inflated and deflated cylinders.
  • Alternating Pressure Air Therapy
  • Unlike other alternating pressure mattresses, the PressureGuard APM won’t create extreme pressure gradients between inflated and deflated cylinders.
  • On top, the Geo-Matt anti-shearing surface forms a comfortable, therapeutic interface between the air system and the user.
  • It absorbs and smooths sharp pressure drop-offs that other surfaces can’t, while the air system does the “heavy lifting” below, alternating weight bearing across the surface in ten-minute cycles.
  • Other standard PressureGuard features include the exclusive Heel Slope taper, and two-part Safety-Edge bolster system for added stability when sitting or transferring.
  • Weight limit: 350 lbs.
  • Mattress weight: 20 lbs

1822.Deluxe Alternating Pressure Pad and Pump System

  • Bubble style pad effectively reduces pressure
  • Automatic 5-minute cycle alternately inflates and deflates
  • Heavy gauge, medical grade vinyl is easy to clean, flame retardant and anti-bacterial
  • Pump mounts to bed with built-in mounting bracket and features an illuminated on/off switch
  • 78″ x 34″ x 2 ½”
  • 275 lb maximum weight capacity
  • Latex Free
  • Power: 120 Volt/60Hz, 1 Amp
  • Pressure: 1.0 – 2.0 psi
  • Air Output: 4.5 liters/min
  • Cycle Time: 5 min.
  • Power Cord Length: 10 ft
  • Pump Size: 9 ¾” x 5 1/8″ x 3 7/8″
  • Pump Weight: 2.5 lb

1823.Standard Pump and Bubble-style Pad, (120V)

  • Bubble style pad effectively reduces pressure
  • Automatic 5-minute cycle alternately inflates and deflates
  • Heavy gauge, medical grade vinyl is easy to clean, flame retardant and anti-bacterial
  • Pump mounts to bed with built-in mounting bracket and features an illuminated on/off switch
  • 78″ x 34″ x 2 ½”
  • 275 lb maximum weight capacity
  • Latex Free
  • Power: 120 Volt/60Hz, 1 Amp
  • Pressure: 1.9 psi
  • Air Output: 4.5 liters/min
  • Cycle Time: 5 min.
  • Power Cord Length: 10 ft
  • Pump Size: 8 ½” x 4 ¼” x 3 5/8″
  • Pump Weight: 2.9 lb
